Main Features & Application Scope

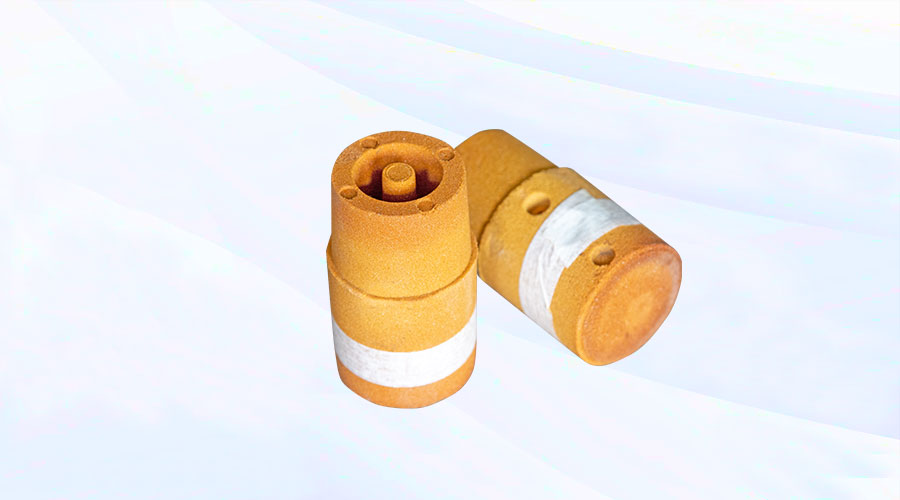

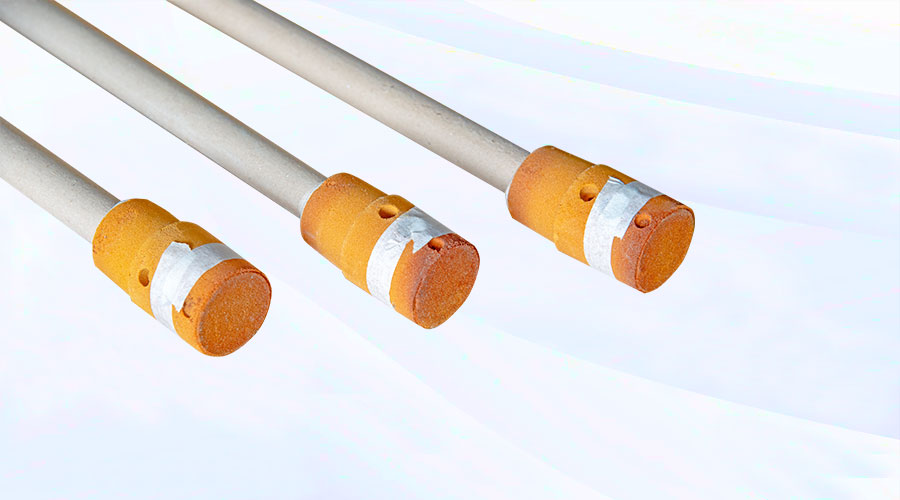

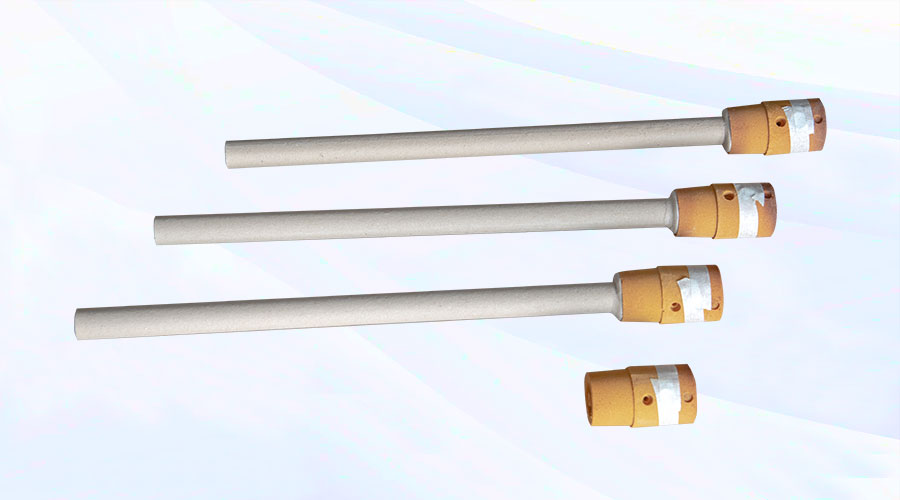

The molten iron sampler is mainly used for sampling molten iron during smelting process for spectral analysis, and it has the advantages such as simple structure and easy use.

• High sampling success rate;
• Full, dense and smooth iron samples without large pores;

Usages

• Insert the sampler into the special measurement gun.
• During sampling process, insert the molten iron sampler into the molten iron at a tilt of 60°-65° and the insertion depth of 350mm or above, and maintain the sampling time of 4-6s.
• Pick up the sampler from the furnace and tap it gently to obtain the iron sample.

Notes

• Must protect the samplers from moisture during storage process.
• Must increase the temperature of molten iron to 1500℃ or above for sampling.
• Must avoid strong vibration to prevent breakage of the quartz tube.
• Must control the sampling time.
• Must strictly follow the insertion depth of the molten iron sampler.

The molten iron sampler can be customized according the customer`s requirements.
